Infinity KAPPA 600W Subwoofer Amplifier

Infinity KAPPA 600W Subwoofer Amplifier

$0.00

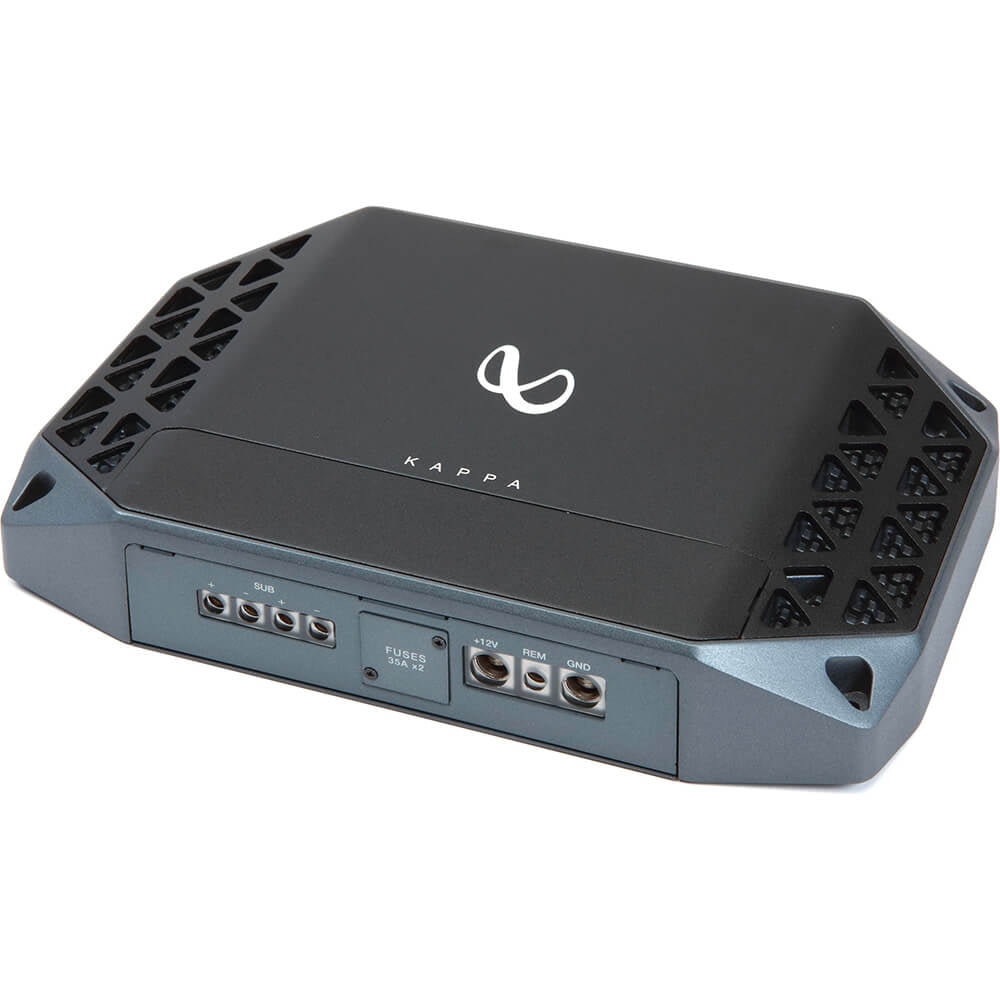

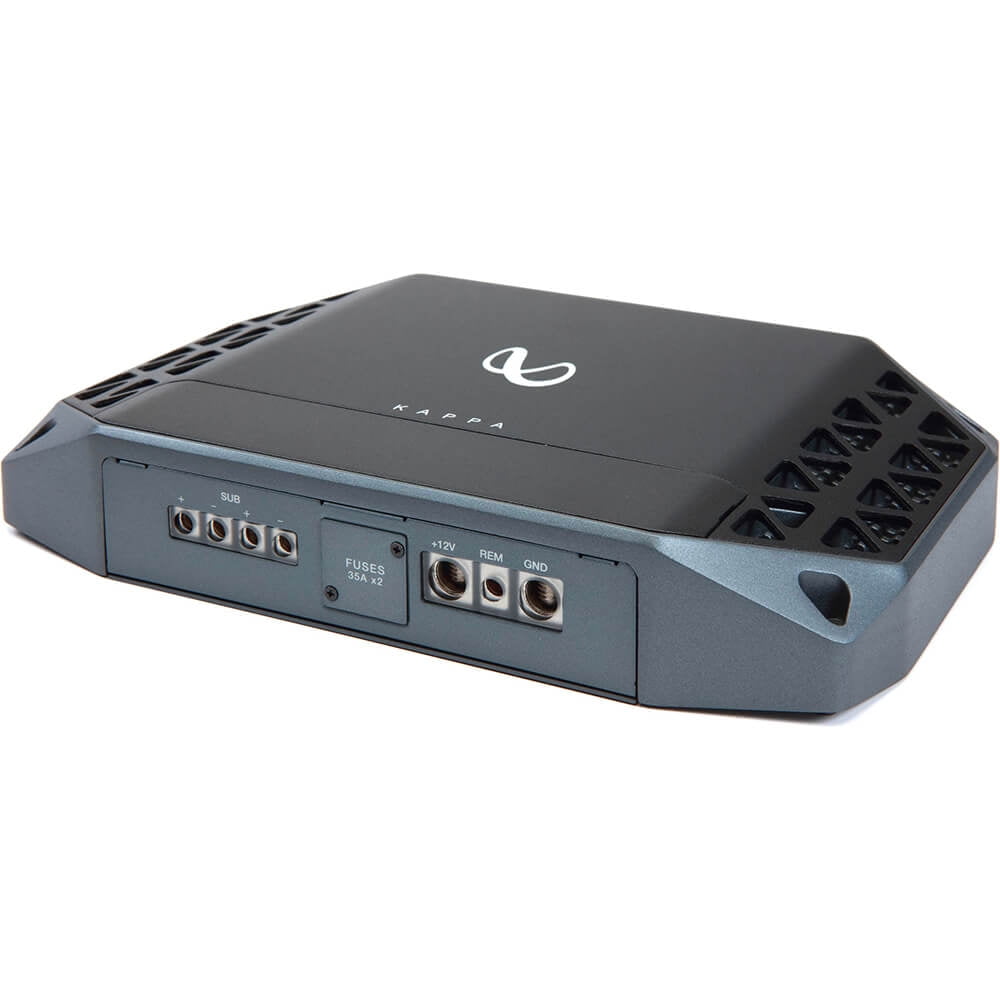

Infinity KAPPAONE6AM 600W Subwoofer Amplifier

Product details

Kappa mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from Infinity. The comprehensive all new E.A.R.L terminal enables easy installation and optimized performance. The remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Kappa amplifiers give you power to shape your car audio experience in new ways.

What's In The Box
1 x Amplifier
2 x Differential Speaker-Level Adapter
3 x Spare Fuses
4 x Philip Screws

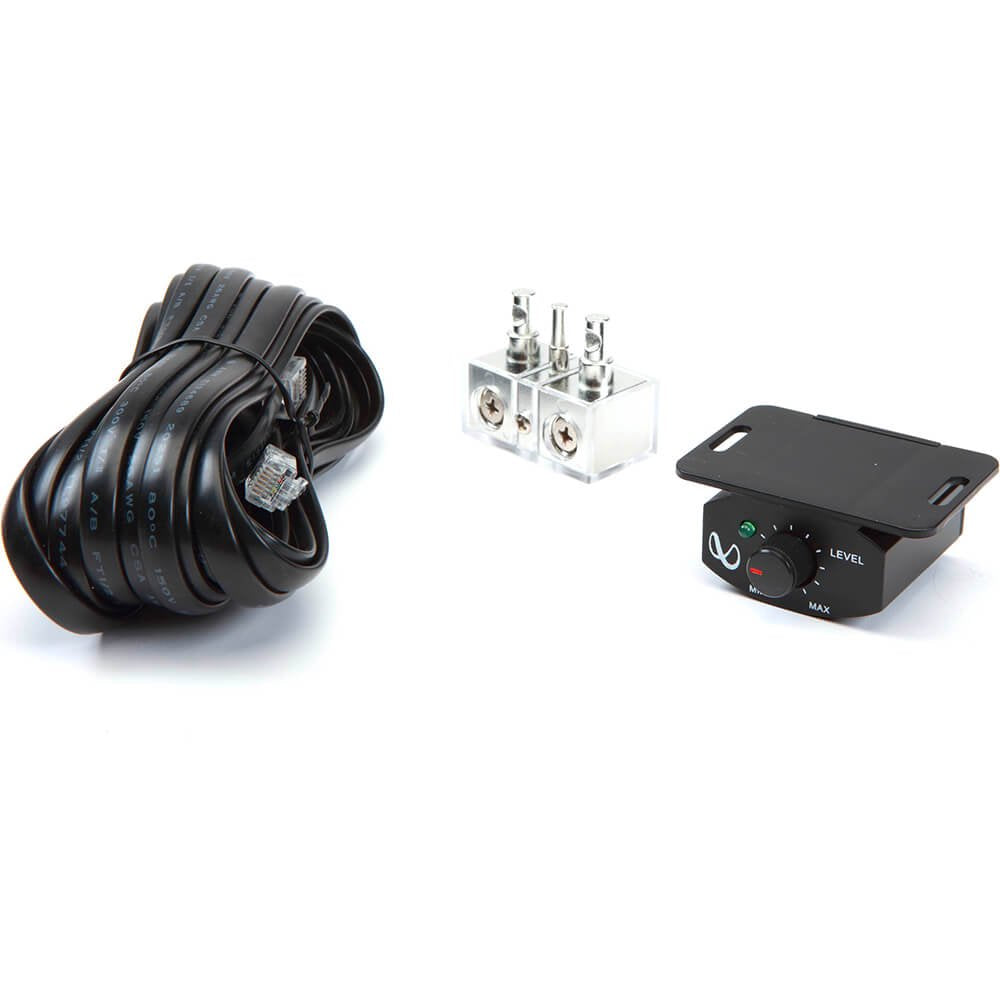

1 x Remote Bass Control & Cable
1 x E.A.R.L Terminal
3 x Self-Tapping Screws
1 x Power Terminal Block

Specifications:
Operating voltage 9-16 volts
RMS power @ 4 ohms 380W
RMS power @ 2 ohms 600W
Total peak power 1500W
Frequency response 10Hz – 320Hz @ -3dB
Crossover filter LPF 32Hz – 320Hz Variable 12dB/Oct
Bass EQ 10Hz-80Hz variable 0-12dB
THD + N at rated power ≤0.1%
High input maximum signal level 20V
High input maximum sensitivity 2V
Line input maximum signal level 20V
Line input maximum sensitivity 0.2V
Line-in signal-to-noise ratio
(reference to 1 watt) ≥80dB
Quiescent current draw ≤1.7A
Fuse size 2 x 35A
Dimensions (H x W x D) 43 x 177 x 260mm
Weight 2.64kg
  • Every Kappa amplifier, including the full-range models, features high-efficiency Class D topology.
  • Infinity’s Kappa amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regardless of output level.
  • Infinity Kappa amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage.
  • All Infinity Kappa amplifiers equipped with newly introduced E.A.R.L terminal for better grounding.
  • With it becoming more and more difficult to find spacious locations for amplifier mounting, Infinity Kappa amplifiers have been developed in a small compact form factor to allow more location versatility.
