Infinity REFERENCE SINGLE 10" THIN enclosure with Passive Radiator

Down-Firing Sealed Enclosure with a Passive Radiator
Reference shallow enclosures are engineered with sealed, down-firing type and loaded with a passive radiator subwoofer and new Reference shallow subwoofers. Such a design brings tighter, more accurate bass and takes up little space.

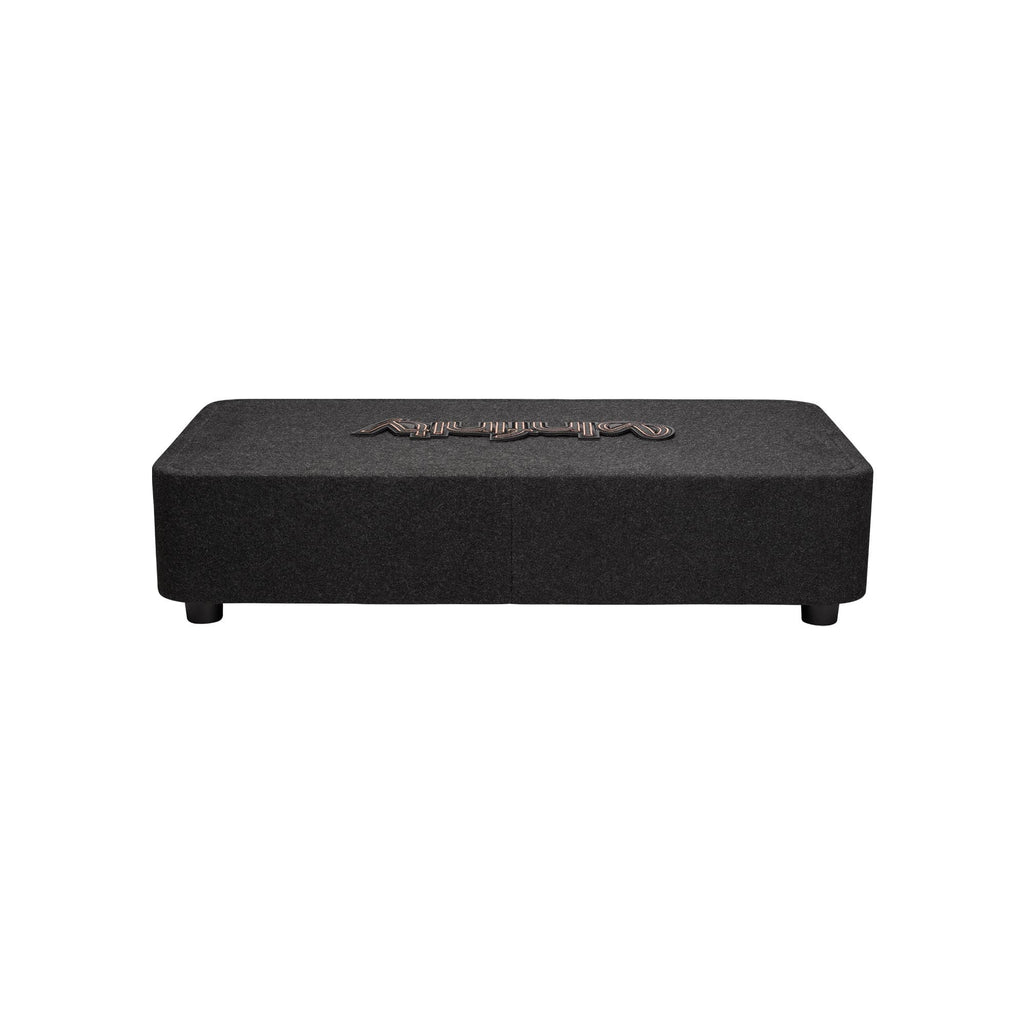

Removable Feet
Reference shallow enclosures are designed with removable feet which allows for flexible placement direction to get best performance and optimize space per vehicle type.

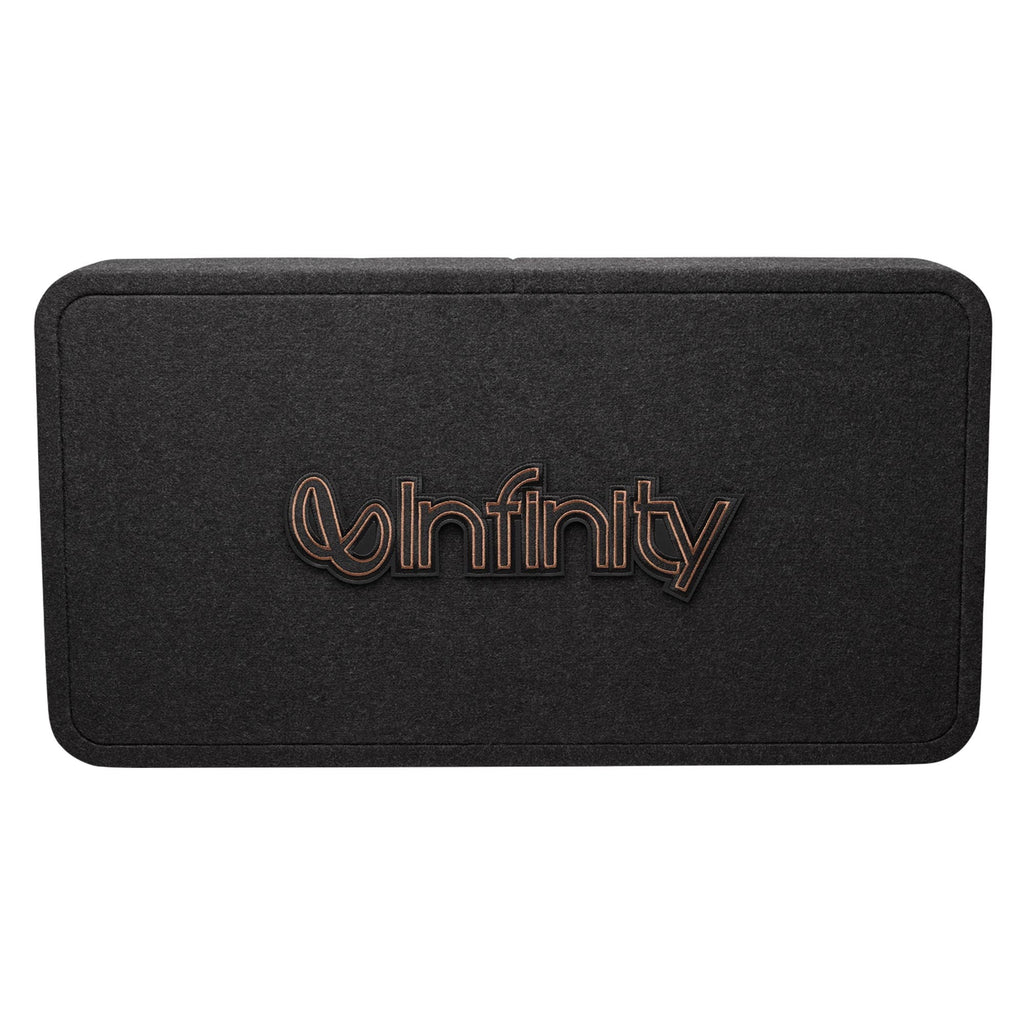

Removable Logo Badge
Reference shallow enclosures are designed with a removable logo badge so you can put anywhere you like.

Built Tough
Reference shallow enclosures are designed with sturdy medium-density fiberboard construction and rugged black carpet covering to resist stacking weight and take a beating.

General Specifications
Subwoofer: 10" (250mm) Aluminum Driver
Power Handling: 350W RMS, 1050W peak
Sensitivity (1W/1m): 82.5dB
Frequency Response (-6dB): 35Hz – 400Hz
Nominal Impedance: 2 ohms
Voice Coil Diameter: 2" (50mm)
Enclosure dimensions: 334mmD x 630mmW x 115mmH 13-1/8"D x 24-7/8"W x 4-1/2"H
Enclosure materials: 3/4” (18mm) MDF with black carpet covering

What's in The Box:
1x Subwoofer Enclosure
1x Infinity Logo Badge
4x Plastic Feet
4x Screw Washer
4x Hexalobular Socket Head M6*25 Screws
1x Quick Start Guide

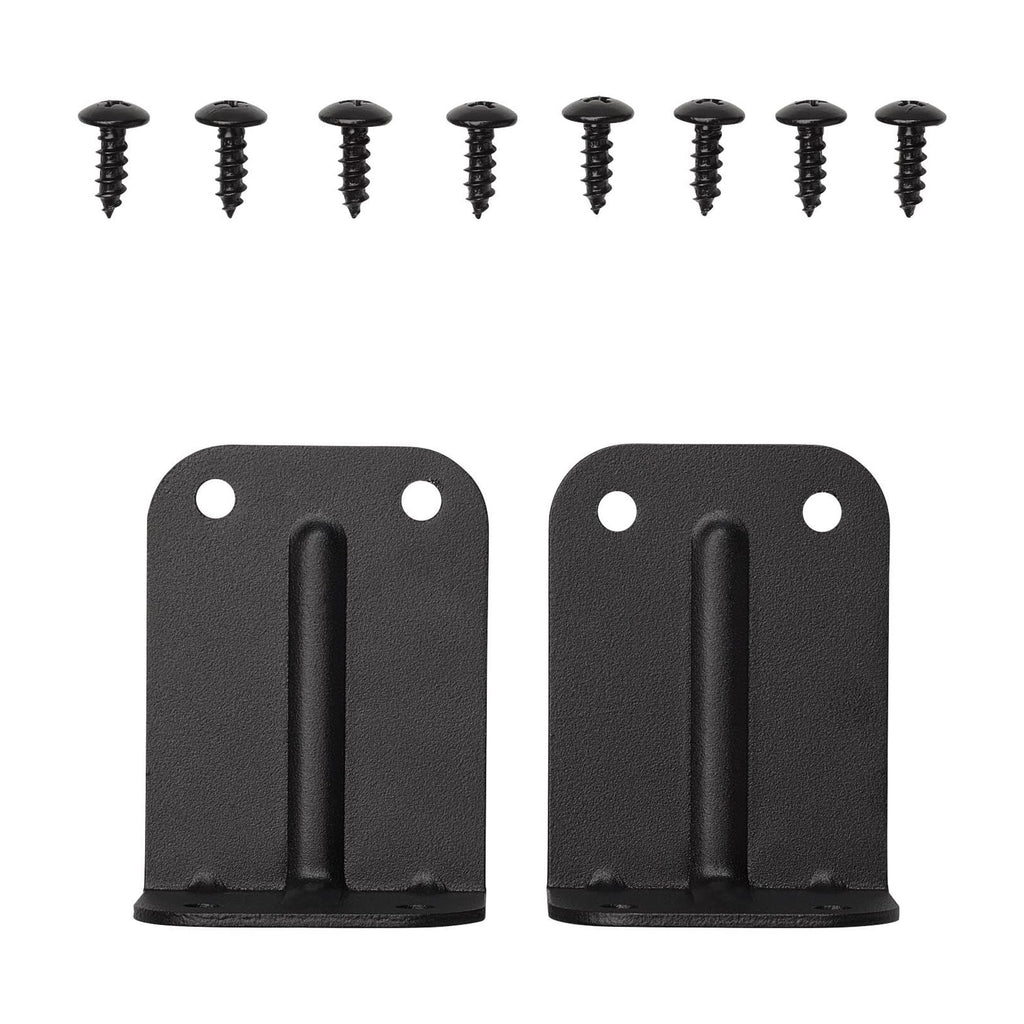

2x Steel Plate + 8x M5*15 Screws
